The installer

The bromigOS USB stick has one installer in two forms. The graphical installer opens full screen on the live desktop. The text installer runs on a plain text screen, for a computer whose picture doesn’t come up, a serial console, or a screen reader. Both ask the same questions in the same words, and both install the same way.

Nothing on any disk changes until you press Install on the last screen. Until then you can go back and change anything.

Starting it

• In the stick’s boot menu, choose Install bromigOS. The live desktop starts with the installer already open.
• Or choose Install bromigOS (text mode) for the text installer. There’s no desktop.
• Or choose Start bromigOS (try it live) to look around first. A welcome card offers Try bromigOS or Install bromigOS. Later, the desktop’s INSTALL panel or “Install bromigOS” in the app launcher opens the installer.

On a computer with no working graphics, “Install bromigOS” opens the text installer by itself.

The steps

1. Welcome. The language your new system uses, your time zone, and whether you’re online. You don’t need the internet: everything is on the stick.

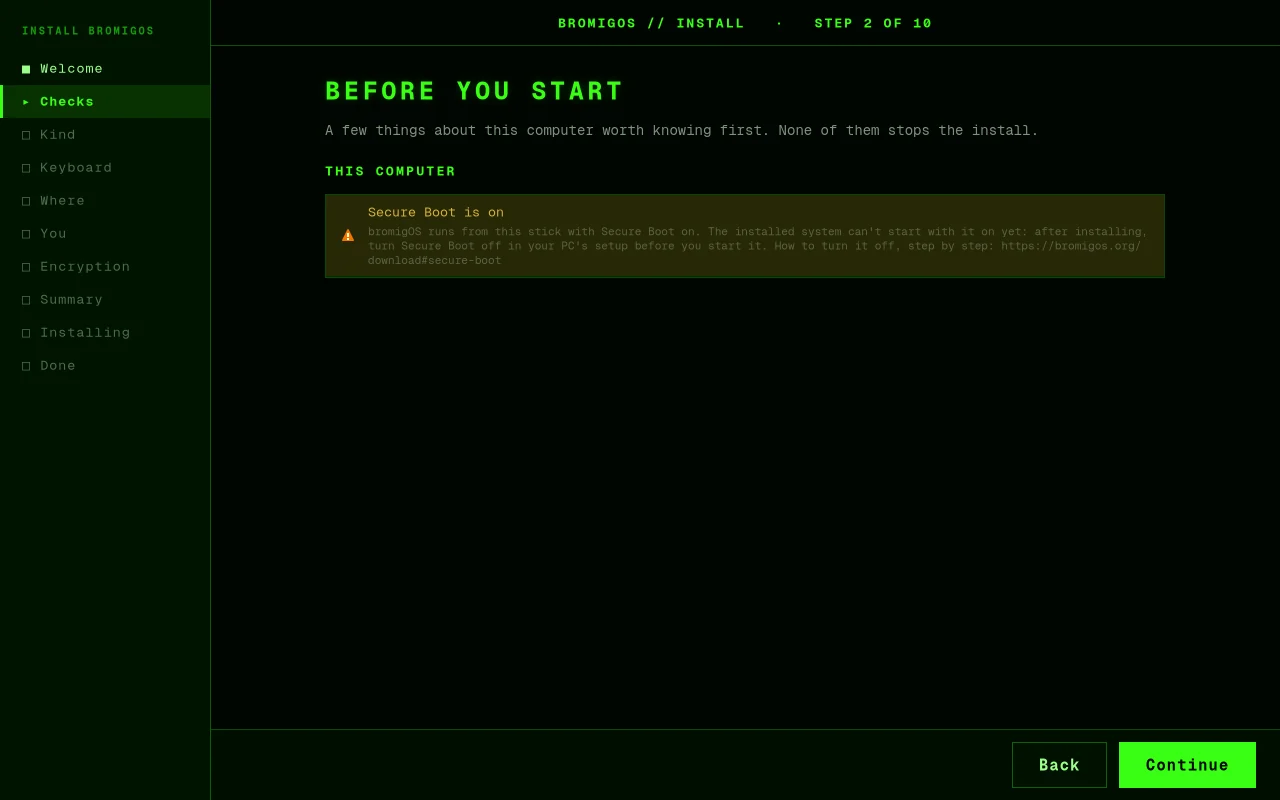

2. Before you start. Shown only when there’s something to know: running on battery (plug in the charger), less than 4 GB of memory, a disk that reports it’s failing, a graphics card bromigOS can’t drive well, Secure Boot. Each line says what to do. None of them stops you. With Secure Boot on, install as usual, then turn Secure Boot off in the computer’s setup before you start bromigOS from the disk: the installed system can’t start with it on yet (Download page).

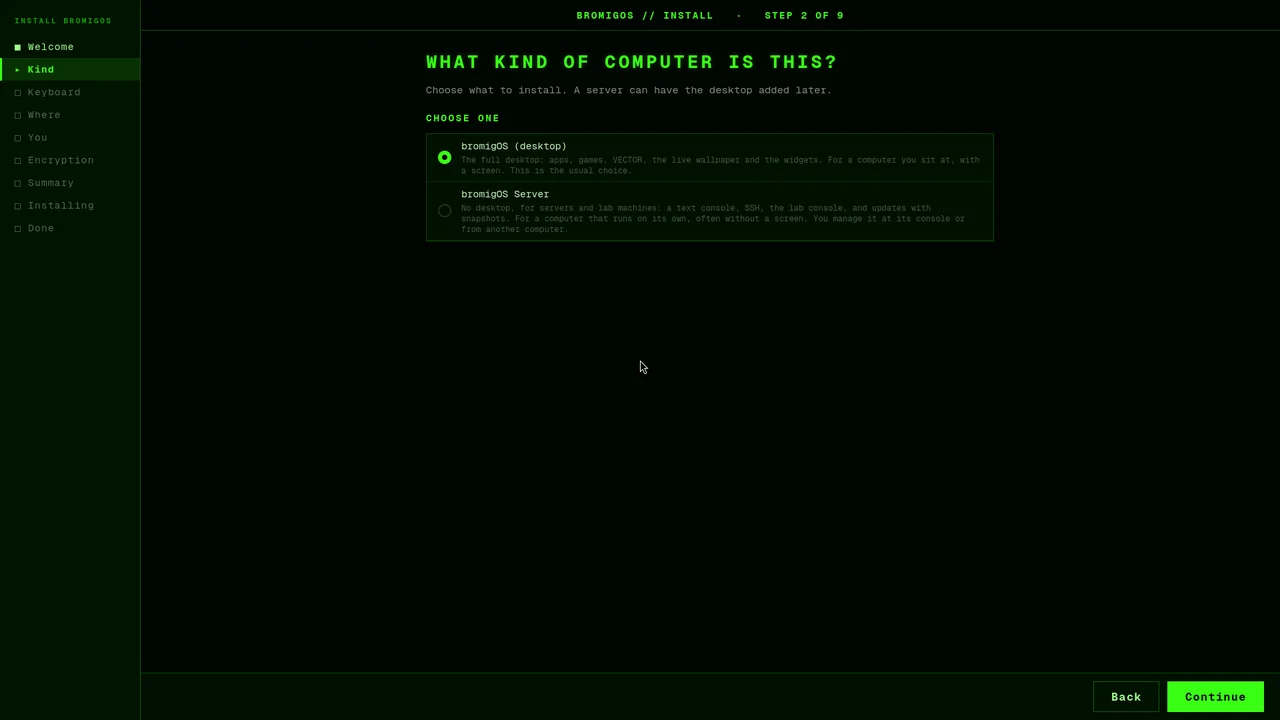

3. What kind of computer is this? bromigOS (desktop) for a computer you sit at. bromigOS Server has no desktop, for servers and lab machines.



4. Your keyboard. Pick the layout that matches your keys. Try it in the box.

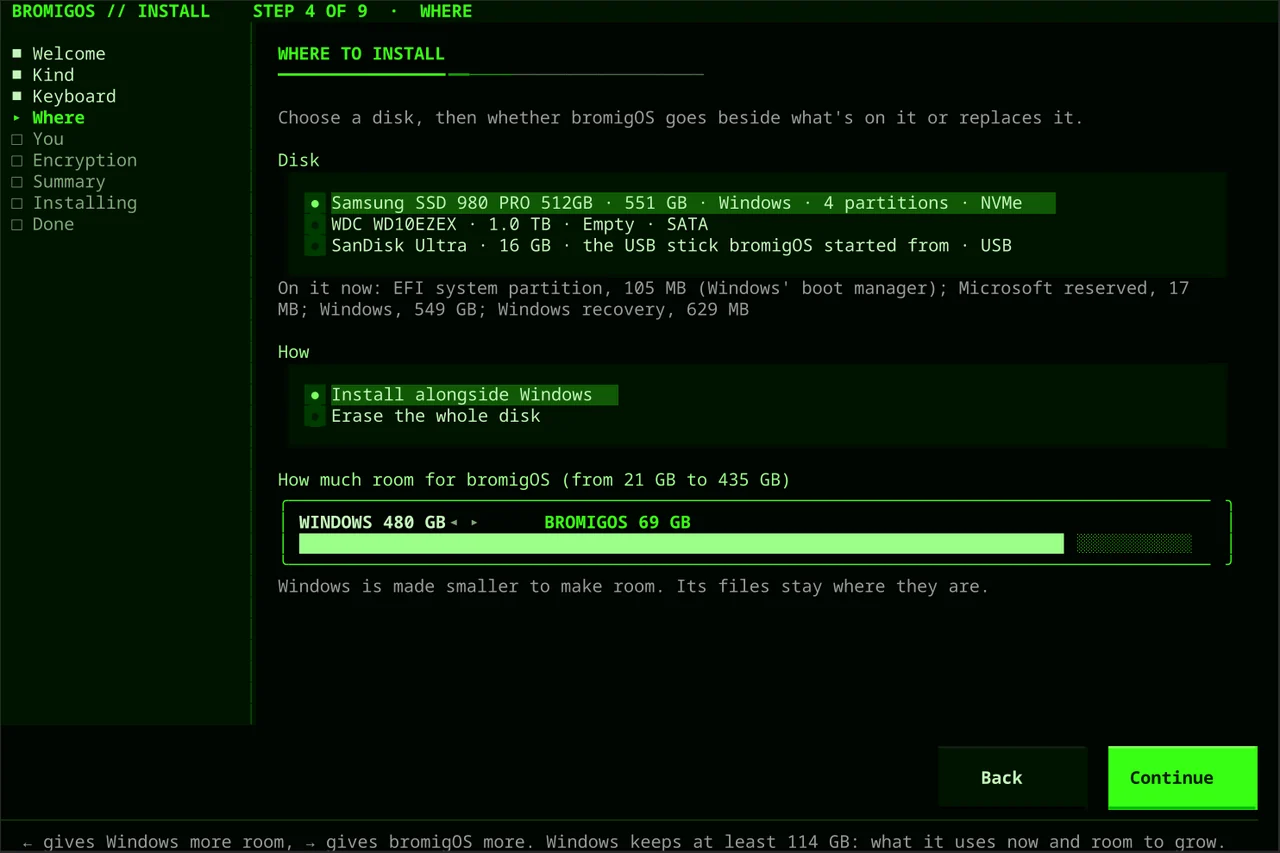

5. Where to install. Every disk, with its size, model and what’s on it. Pick one, then choose how:

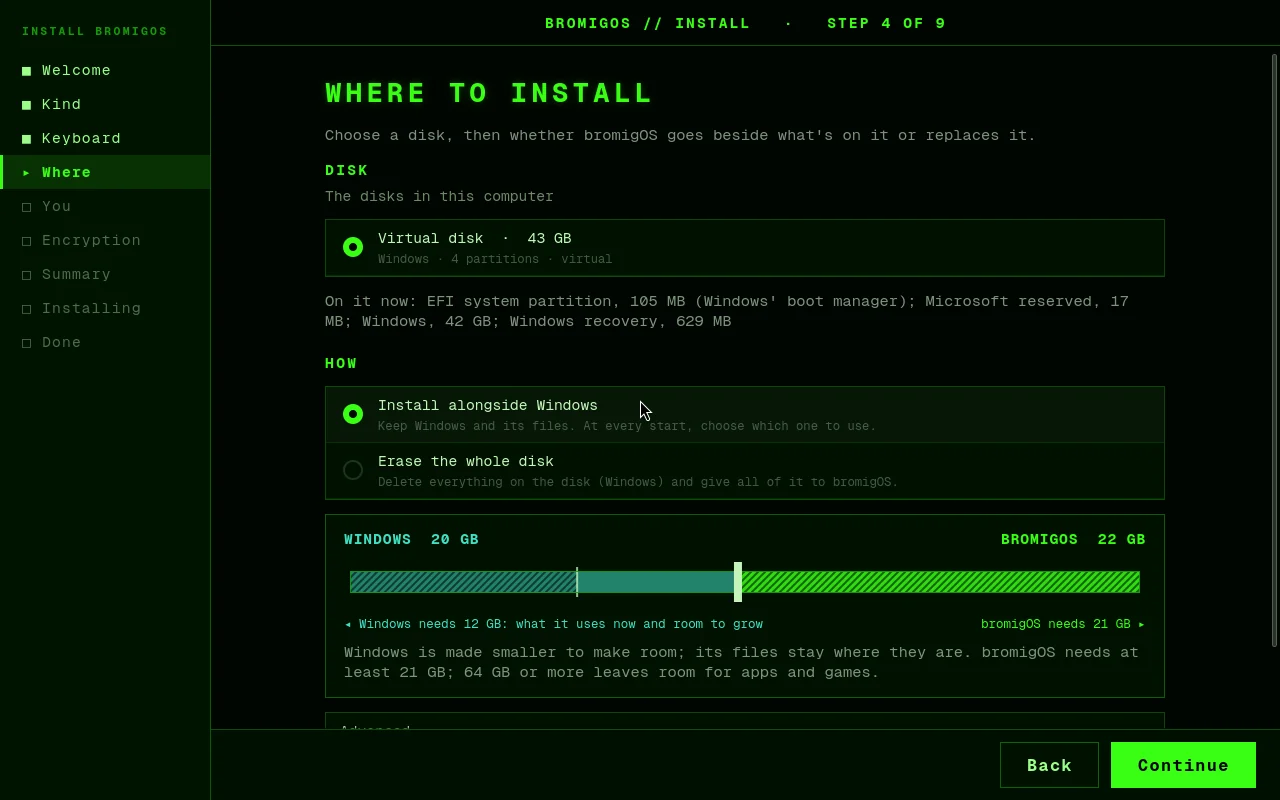

   • Install alongside Windows (or the other system it found). Windows and its files stay. You choose which system to start each time the computer starts. If there isn’t enough free space, the installer makes Windows’ part of the disk smaller. A slider sets how much each gets. Windows keeps what it uses now plus 10 GB to grow, and bromigOS gets at least 20 GB.
   • Erase the whole disk. Everything on the disk is deleted. The screen says what that is.
   • Reinstall bromigOS and keep my files, when bromigOS is already on the disk. You get a fresh system, and your home folder stays as it is.



6. Save Windows’ recovery key, only when Windows uses BitLocker (below).

7. About you. Your name, a user name for signing in, a password, and a name for the computer. The user name and computer name are suggested from your name.

8. Encryption. On by default. The disk can only be read after the passphrase is typed when the computer starts. By default your password is the passphrase. You can give the disk its own instead.

   Remember it. Nobody can recover a forgotten passphrase, and the disk can’t be read without it.

9. Remote access and protection, for bromigOS Server only: SSH (signing in from another computer), the firewall, and automatic updates. See bromigOS Server.

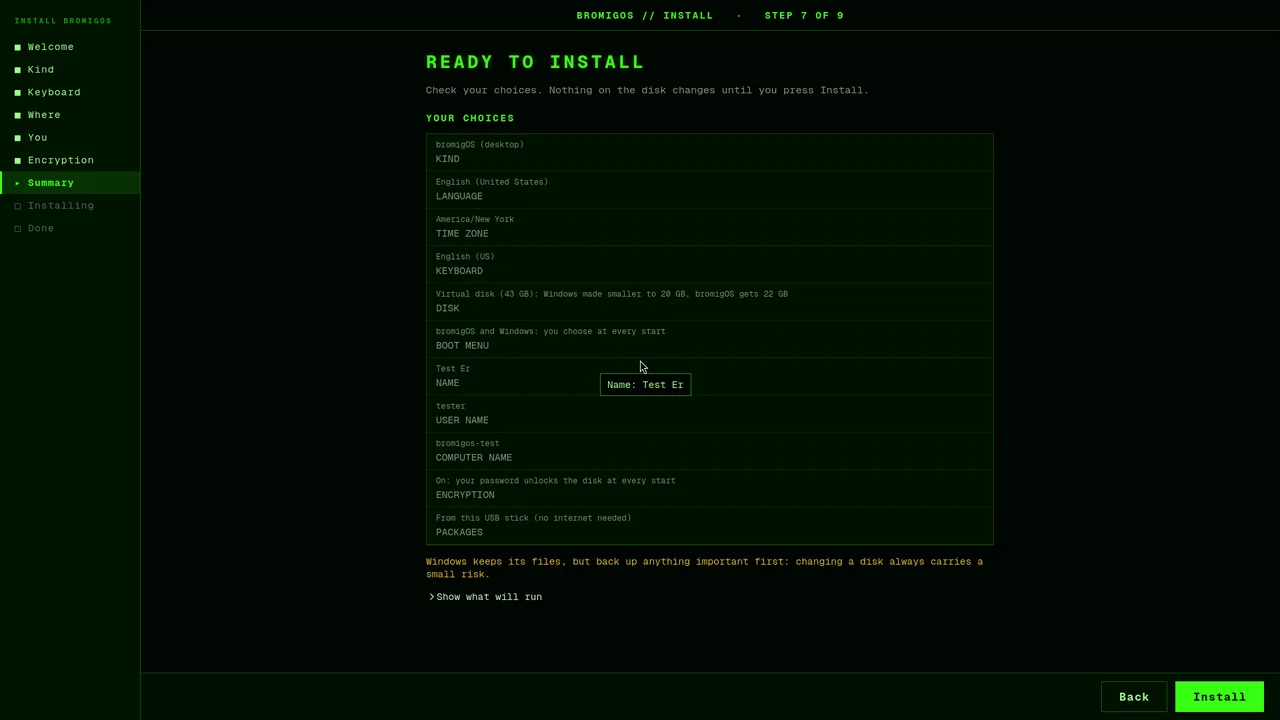

10. Summary. Every choice in plain words. The button says Install, or Erase disk and install when the disk is erased.



11. Installing. A progress bar and a line saying what’s happening. Details shows every step. It takes about ten minutes.

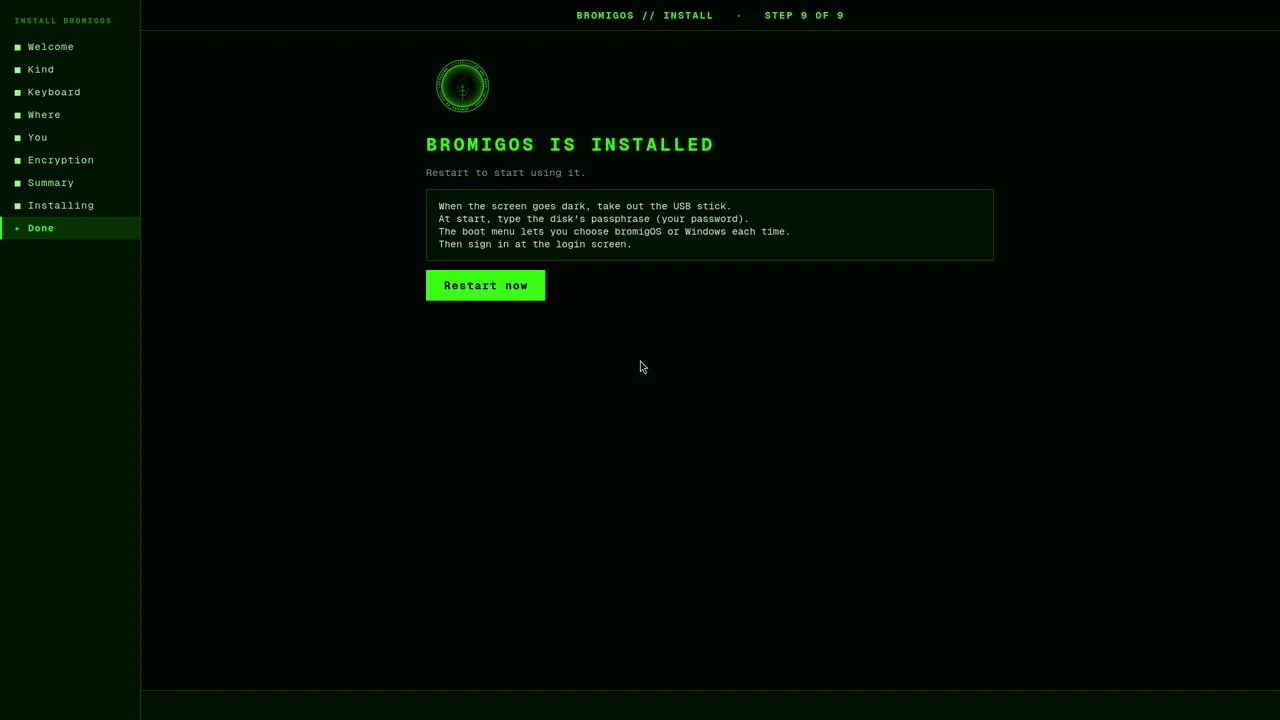

12. Done. Press Restart now. Take out the stick when the screen goes dark.



Installing alongside Windows

The installer won’t change Windows’ drive when that isn’t safe. It says so, and what to do:

• Windows is paused (Fast Startup or hibernation). Windows didn’t really shut down, so its drive can’t be changed safely. In Windows, open Control Panel › Power Options › Choose what the power buttons do. Click “Change settings that are currently unavailable” and untick Turn on fast startup. Then hold Shift while you click Shut down. Start the installer again.
• Windows wants to check its drive. Start Windows, let it finish starting, then hold Shift while you click Shut down.
• Windows uses BitLocker (Device encryption). The installer never makes a BitLocker drive smaller. Either turn BitLocker off in Windows (Settings › Privacy & security › Device encryption) and wait until it’s done, or make free space yourself: in Windows, open Disk Management, right-click the C: drive, choose Shrink Volume and leave at least 20 GB free. bromigOS then installs in that free space.

After installing beside Windows, Windows checks its drive once the next time it starts. That’s normal.

BitLocker’s recovery key

When Windows uses BitLocker, the installer first asks you to save its recovery key. Installing bromigOS changes how the computer starts, and Windows may then ask for that key once. Without it, Windows’ files can’t be opened.

To get it: in Windows, open Settings › Privacy & security › Device encryption › BitLocker drive encryption › Back up your recovery key. Or sign in at aka.ms/myrecoverykey on another device. The key is 48 digits. Keep it somewhere that isn’t this computer, then turn on I’ve saved the BitLocker recovery key.

Reinstalling and keeping your files

When the disk already has bromigOS, Reinstall bromigOS and keep my files gives you a fresh system and keeps your home folder: your documents, pictures, settings and everything else in it. The old system is kept as a snapshot, so nothing is lost. If the disk is encrypted, type the passphrase you use when the computer starts. The disk keeps it. If the reinstall stops partway, your old bromigOS is put back as it was, and the computer starts as before.

bromigOS Server

bromigOS Server has no desktop. It starts to a text screen and you manage it there or from another computer. The installer asks three more things:

• SSH lets you sign in from another computer on your network. It’s off by default. When it’s on, Keys only is the safe choice: you sign in with a key file from your other computer, which nobody can guess. The installer reads keys from the stick’s fieldkit folder (any .pub file), or you can paste one. Keys or my password also allows your password, which anyone on the network can try to guess.
• Firewall. On by default. It blocks connections from other computers, except SSH when it’s on.
• Automatic updates. On by default. Security fixes install by themselves, each after a snapshot, so a bad update can be undone from the boot menu.

When something goes wrong

The installer says what stopped and what to do, in plain words. Save a problem report puts the install’s logs, a summary of the hardware and your answers (never your password) on a USB drive, and says where it went. Send that file when you ask for help.

Keyboard only and screen readers

Every step works with the keyboard alone:

Every control has a hint. In the graphical installer it shows when you hover over the control, and a screen reader (Orca) reads it. In the text installer the line at the bottom of the screen says what the focused control does.

With the stick’s Start with the screen reader (speech) entry, the text installer asks its questions one at a time as plain lines, which the screen reader reads in order.

For power users

Everything below is optional. The plain steps above are the whole install.

What runs

The installers write your answers to a file only root can read and run:

sudo bromigos-iso-install --answers FILE

That turns the answers into archinstall’s two files with /usr/local/lib/bromigos-iso/answers.py: config.json and creds.json, created with mode 0600. The password and the disk passphrase go in creds.json only, never in the config, on a command line or in a log. Then it runs archinstall silently, sets up bromigOS in the new system, and prints its progress. You can also run archinstall’s files yourself:

python3 /usr/local/lib/bromigos-iso/answers.py --answers FILE --out DIR
sudo bromigos-iso-install --config DIR/config.json --creds DIR/creds.json

--menu (with --config) opens archinstall’s own menu, filled in, so you can change anything before it installs. The install’s log is /var/log/bromigos-iso-install.log on the live system. The installed system keeps your answers, without the password and passphrase, in /var/log/bromigos/install-answers.toml: add a password and it’s an answer file that repeats the install.

Show what will run and Advanced. Both installers have a Show what will run toggle on the summary. It shows the archinstall configuration with every secret replaced by ********, and the bromigos setup lines the install will run. The Advanced expander on the Where step, out of the way unless you open it, offers custom partitioning (archinstall’s own partitioning menu), the root’s file system options, swap (zram by default), the kernel (linux, linux-lts or linux-zen) and the boot loader. The shell key (Ctrl+Alt+T in the graphical installer, F12 in the text installer) gives you a root shell on the live system at any step.

Answer files

An answer file installs with no questions. After a 10-second countdown with Cancel, the install runs by itself. A file with problems is never half-used: the installer says what’s wrong and asks the questions instead.

The installer looks for one:

1. at bromigos.answers=PATH on the kernel line: a file on the live system, or a path on the stick;
2. else at bromigos/install.toml or fieldkit/install.toml on a USB drive: a partition formatted FAT, exFAT or NTFS, or a stick formatted without a partition table.

Flat YAML (install.yaml, one key: value per line) works too.

Erase a disk, encrypted, for the desktop:

[install]
edition = "desktop"
locale = "en_GB"
timezone = "Europe/London"
keyboard = "gb"
disk = "/dev/nvme0n1"
mode = "erase"
full_name = "Alex Rivera"
user = "alex"
hostname = "alex-pc"
password = "correct horse battery staple"
encrypt = true

Beside Windows, giving bromigOS 128 GiB:

[install]
edition = "desktop"
locale = "en_US"
timezone = "America/Chicago"
keyboard = "us"
disk = "/dev/nvme0n1"
mode = "alongside"
bromigos_bytes = 137438953472
user = "sam"
hostname = "sam-laptop"
password = "a long passphrase you will remember"
encrypt = true
separate_passphrase = true
passphrase = "a different one for the disk"
bitlocker_saved = true
countdown = 30

bromigOS Server, keys only:

[install]
edition = "server"
locale = "en_US"
timezone = "UTC"
keyboard = "us"
disk = "/dev/sda"
mode = "erase"
user = "ops"
hostname = "rack-01"
password = "used at the console and for sudo"
encrypt = true
ssh = true
ssh_password = false
ssh_keys = ["ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAI…your-key… you@laptop"]
firewall = true
auto_updates = true
countdown = 10

Boot parameters

When the text installer is asked for on the full stick, the login screen steps aside for that boot so the installer has the screen.

The disk layout

Erase:

Alongside: the disk’s own EFI system partition (Windows’) is mounted at /boot/efi, untouched apart from GRUB’s own folder. A new 2 GiB ext4 /boot and the btrfs root go in the largest free stretch. /boot‘s partition type is set back to “Linux filesystem” after archinstall, so the disk keeps one EFI system partition. GRUB goes in EFI/GRUB with a firmware boot entry first in the boot order, not at the removable path EFI/BOOT/BOOTX64.EFI, which is Windows’ fallback loader. GRUB_DISABLE_OS_PROBER=false in /etc/default/grub makes every grub-mkconfig list Windows; the menu waits 10 seconds.

On a BIOS computer the disk must use MBR (GPT needs UEFI), and MBR holds four partitions: alongside needs two free slots. On a UEFI computer the disk must use GPT.

btrfs subvolumes: @ (/), @home (/home), @log (/var/log), @pkg (/var/cache/pacman/pkg) and @.snapshots (/.snapshots). snapper keeps snapshots of / and /home; GRUB lists the root’s snapshots (grub-btrfs).

LUKS: LUKS2 around the root partition only. The passphrase is your password unless you gave the disk its own. archinstall adds the encrypt hook and the kernel parameter; the installer adds plymouth before it, so the passphrase prompt is part of the boot splash. /boot stays unencrypted: GRUB reads the kernel from it, and GRUB can’t open a LUKS2 volume protected the way archinstall makes it. Your files, the system and the snapshots are all inside the encrypted part.

How alongside makes room

When there’s 20 GB or more of free space, nothing is resized. Otherwise the biggest NTFS (or ext4) partition with room to spare is shrunk, after checking again that it isn’t BitLocker, hibernated or waiting for a check:

1. the file system first: ntfsresize (or e2fsck and resize2fs for ext4), a dry run, then the real one;
2. then the partition: sfdisk -N, a little larger than the file system;
3. then a check that the file system still reads whole (ntfsresize --info).

The resize marks the NTFS volume for Windows’ own check, so Windows runs it once at its next start.

How reinstall works

1. The root is unlocked (LUKS) with the passphrase you typed.
2. The old @ is kept as a read-only snapshot, @old-root-DATE, and @.snapshots becomes @old-snapshots-DATE. A fresh @ and @.snapshots are made. @home, @log and @pkg are kept.
3. Everything is mounted at /mnt and archinstall installs into it (its pre-mounted layout).
4. The people from the old system come back with the same user IDs, groups and passwords (from the old /etc/passwd and /etc/shadow); you get the new password. /home’s snapper configuration comes back too.
5. The disk’s unlocking and GRUB are set up again. Only then are the old kernels, kept aside on /boot until now, removed.

If the install stops before step 5 finishes, the old system is put back: @ again from @old-root-DATE (its fstab naming the subvolume by name), its snapshots and its kernels. The computer starts as it did before, and the installer says so.

To look at the old system later, mount the btrfs volume with subvolid=5 and open @old-root-DATE. Delete it with btrfs subvolume delete when you no longer need it.

More detail, for contributors, is in the repository’s docs/iso.md.
